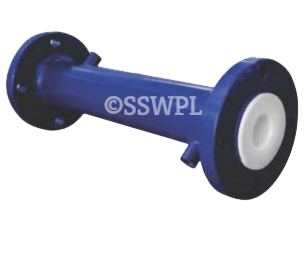

Lined Pipe Spools (Jacketed)

DIMENSIONAL TABLE

Pipework	(NB)	ØOD	ØID	ØRF	ØP.C.D	NH	ØH	T	C	Max. Length	Pipe Sch.	Min. Lining Thk
Inches	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
1/2”	15	88.9	8.5	35	60.3	4	16	11.1	9	6000	40	3.5
3/4”	20	98.4	14	43	69.8	4	16	12.7	9	6000	40	3.5
1”	25	108	19	51	79.4	4	16	14.3	11.5	6000	40	3.5
1.1/2”	40	127	34	73	98.4	4	16	17.5	13.5	6000	40	3.5
2”	50	152.4	45	92	120.6	4	19	19	15.5	6000	40	3.5
2.1/2”	65	177.8	55	105	139.7	4	19	22.2	15.5	6000	40	3.5
3”	80	190.5	69	127	152.4	4	19	23.8	19	6000	40	4
4”	100	228.6	92	157	190.5	8	19	23.8	19	6000	40	4
6”	150	279.4	144	216	241.3	8	22.2	25.4	20	6000	40	5
8”	200	342.9	192	270	298.4	8	22.2	28.6	20	3000	40	6
10”	250	406.4	241	324	361.9	12	25.4	30.2	24.2	3000	20	7
12”	300	482.6	296	381	431.8	12	25.4	31.8	24.2	3000	20	7
14”	350	533.4	325	413	476.2	12	28.6	34.9	24.2	2000	20	8

MATERIAL SPECIFICATION

Item Des.	Material (standard)	Material (optional)
PIPE	SEAMLESS CS ASTM A 106 GR.B	SS304, SS304L, SS 316. SS316L
PIPE SCHEDULE	SCH.40	SCH.10, SCH.20, SCH.30, SCH.60, SCH.80, SCH.100, SCH.120,SCH.140, SCH.160
LINING	PTFE ASTM D 1457 (TYPE : III)	PVDF-ASTM D 3322, PP-ASTM D 4101, HDPE, ANTISTATIC PTFE
FLANGE	ANSI B 16.5-ASA150# (MADE FROM IS 2062 PLATE)	ASTM A105, SS304, SS304L, SS316, SS316L
FLANGE RATING	ASA150#	CLS.300, CLS.600, BS10-TABLE D, TABLE E, TABLE F, TABLE H, TABLE J, & TABLE K, DIN STANDARD- PN6, PN10,PN16, PN25 & PN40

TESTING SPECIFICATION

100% Visual Check/Dimensional Check.
100% Hydro Test at 29.9 kg/cm(g) for holding time of 3 Mins. as per ASTM F 1545 - 15A.
100% Spark Test at 10 kv after Lining.
100% Lining Thk. to be checked. (>80% of Flaring Thk.)
