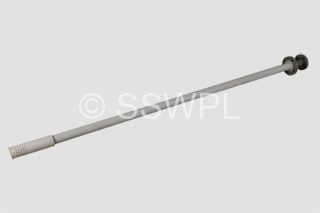

Lined Dip Pipe/Drop Tube

fluro product

DIMENSIONAL TABLE

GLR Capacity  in Ltrs. Nozzle
Dia for
AE-Reactor
Nozzle
Dia for
CE-Reactor
Dip pipe
size
in NB
PCD PCD OD N X Dø AE With
Anchor
Length L for
AE With Type
Impeller
CE With
Impeller
Type
63 80 - - 25 79.5 108 4 x 15 300 300 - C
100 80 - - 25 98.5 127 4 x 18 400 400 - C
160 80 - - 25 121 152 648 648 - A/B
250 80 - - 25 152 191 800 800 - A/B
500 100 - - 40 850 920 - A/B
630 100 - - 40 1015 1070 - A/B
1000 200 100 - 50 1200 1200 - A/B
1600 200 100 100 50 1480 1480 1250 A/B
2000 200 100 100 50 1600 1600 1450 A/B
2500 200 100 100 50 1800 1800 1500 A/B
3000 200 100 100 50 1800 1800 1650 A/B
4000 250 150 150 50 2000 2000 1800 A/B
5000 250 150 150 50 2200 2200 2200 A/B
6300 250 150 150 50 2300 2300 2300 A/B
8000 - - 150 80 - - 2400 A
10000 - - 200 80 - - 2500 A
16000 - - 200 80 - - 2600 A
20000 - - 200 80 - - 2800 A

MATERIAL SPECIFICATION

Item Des. Material
Lining PTFE / Antistatic
Pipe ASTM A 106, Gr. B, SS 304, SS 316, SS 316L
Flange IS 2062, SA 105N, SS 304, SS 316, SS 316L
Sch. 10, Sch. 20, Sch. 30, Sch. 40, Sch. 60, Sch. 80,
Pipe Sch. Sch. 100, Sch. 120, Sch. 140, Sch. 160
BS 10 - Table D, Table E, Table F, Table H, Table J & Table K
Flange Rating DIN Standard - PN 6, PN 10, PN 16, PN 25 & PN 40, ASA 150

TESTING SPECIFICATION

  • 100% Visual Check / Dimensional Check.

  • 100% Hydro Test at 6 kg/cm2(g) for holding time of 3 Mins. as per ASTM F-1545.

  • 100% Lining Thk. to be checked.

  • 100% Spark Test at 10 kv after Lining

PTFE Lined Dip Pipes manufacturers

PTFE Lined Dip Pipes are used across the world. They are mostly used in a wide range of water treatment plants. Also, many PTFE Lined Dip Pipes are used even in the thermal power plants, chemical industries and a wide variety of other type of industries. PTFE Lined Dip Pipes are available in different materials, like steel and plastic. However, Super Scientific, one of the best PTFE Lined Dip Pipes manufacturers in India makes strongest and most dependable PTFE Lined Dip Pipes using the best material.

There are many other applications of the PTFE Lined Dip Pipes in India and other parts of the world as well. Mostly, dip pipes are used are built the connections between plants and other scientific items. Therefore, these pipes have to be extremely sturdy and efficient.

Super Scientific has built a superbly advanced facility to manufacture the strongest PTFE Lined Dip Pipes in India. Therefore, we are known as one of the best PTFE Lined Dip Pipes manufacturers in the country. Also, we specifically take care of the pricing of the scientific items. We make sure that we intelligently decide the prices of our products. Also, we make a wide range of PTFE Lined Dip Pipes which are perfect for a wide range of applications. And, our pipes are used in several industries as well. Although, we keep evolving and improving our facilities to ensure that we deliver only the best quality products to our clients.
